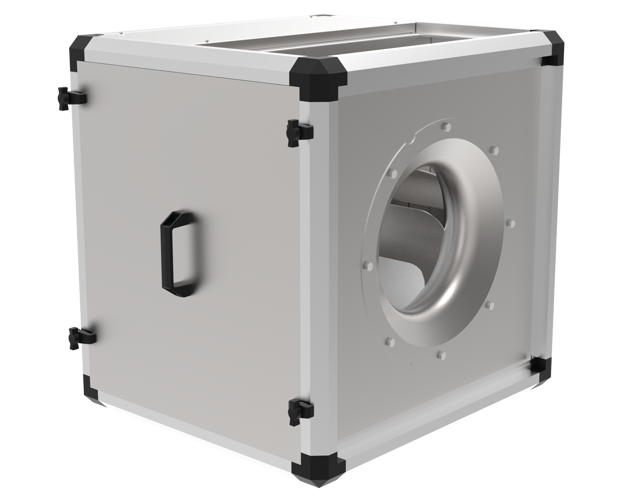

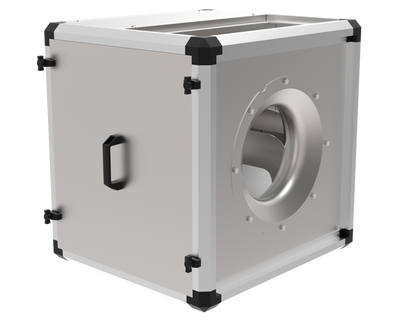

The Fläkt Woods Estoc EC Targe 50‑355‑3 is a powerful and energy‑efficient 3‑phase EC powerbox fan designed for commercial and industrial ventilation systems. Featuring controllable EC motors with variable speed control, it delivers strong airflow up to approximately 3.7 m³/s and static pressures up to ~1000 Pa. The motor is situated outside the airstream for higher temperature tolerance, and the casing allows flexible outlet orientations for efficient ventilation.
Material:
• Heavy‑duty galvanised steel casing with robust construction
• High‑efficiency backward‑curved centrifugal impeller
• Corrosion‑resistant protective coating
Specifications:
• Model: GF503556 – Estoc EC Targe 50‑355‑3
• Type: 3‑phase EC powerbox fan
• Airflow up to ~3.7 m³/s, static pressure up to ~1000 Pa
• Controllable EC motors with variable speed control (0‑10 V)
• Multiple outlet orientations with motor located out of the airstream
• Ideal for commercial and industrial HVAC ventilation systems
